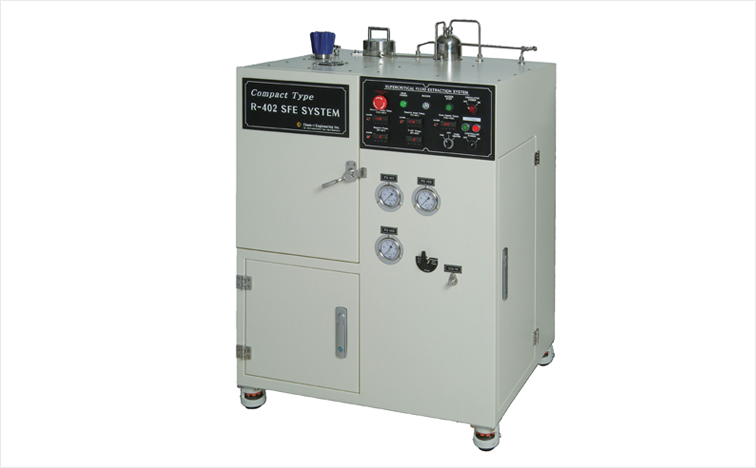

R-402 Compact Supercritical Fluid Extractor System


Features

- Without the effect on surrounding temperature users can make the temperature uniform.
- Users can gain the extract from the extractor more easily than system.
- Users can open & close the cover from the vessel because of pin type.
- Users can move the extractor by lifing in the oven easily.
General Specification
Extractor
  · Material : 316SS, hastelloy C-276, Ti ,inconel, etc.
  · Capacity : 50ml~ 1.5L
  · Design Max. temperature : 250℃
  · Design Max. pressure : 10,000 psig 		  Condenser
  · coil type
  · insert into the chiller		   Seperator
  · Capacity : 50ml~ 10Liter
  · Material : 316SS
Cover
  · gas inlet nozzle & valve
  · gas outlet nozzle & valve
  · thermowell
  · pressure equipments nozzel
  · etc.
   Receiver tank
  · Capacity : 50ml~ 10Liter
  · Material : 316SS

Pump
  · Design Pressure : 1~10,000 psig
  · Material : 316SS
  · Connection : 1/4"~1/8"
Heater
  · electric band heater
   Chiller
  · Bath capacity : 6~30 Liter
  · Temperature range : -20~100℃



Order Guide
302 A B C D E G
Series Capacity Pressure Temp. Material Power Control System
402 1. 50ml 1. 300psig 1. 100℃ 1. 304SS 1. 220/60/1 1. Local Controllers
  2. 100ml 2. 500psig 2. 200℃ 2. 316SS 2. 220/60/3 2. Local Controllers &
R-SCS SW(PC)
  3. 500ml 3. 1000psig 3. 250℃ 3. HC-276 3. 220/50/1 3. DAQ System
(Only PC version)
  4. 1000ml 4. 2000psig   4. Inconel 4. Other 4. Other
  5. 1500ml 5. 3000psig   5. Other
  6. Other 6. 5000psig
    7. 10,000psig
General 사양 이외의 온도, 압력, 용량일 경우 당사로 연락바랍니다.
