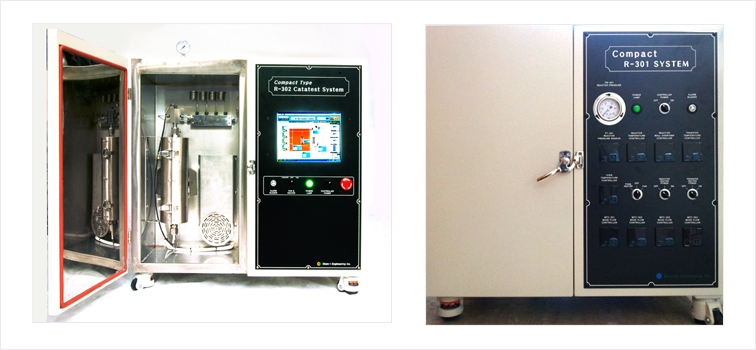

 R-302 Series Compact Catatest Reactor System |
|
| Features |
Compact design of the complete system for easy installation and also easy transport by wheel. |
| Oventype Skid |
Oven system surround reaction zone can keep the even test without any effect from any change of circumstance. Also, it can of reactor can keep even temperature of oven circumstance. |
| General Specification |
 REACTOR : 5 ~ 500mL
· MAX TEMP. : 800℃
· MAX PRESS. : 6000PSIG
· INCONEL, HASTELLOY, ETC |
|
HEATER : CERAMIC FIBER HEATER
· ZONE : 2 ~ 5 ZONE.
· MAX TEMP. : 1000℃
|
|
MFC : BRONKHORST,BROOKS, LINE-TECH,ETC.
· ACCURACY : ± 1%
· SIGNAL : 0~5VDC OR 4~20mA |
BPR: TESCOM, SWAGELOK, ETC.
· PRESS. RANGE : 0~10,000PSIG
* OPTIONAL : ER-3000 SERIES |
|
SEPERATOR : 316SS, ETC
· TEMP. : 0 ~ 200℃
· PRESS. : 0 ~ 3000PSIG
* OPTIONAL : LEVEL
· SWITCH & PNEUMATIC
· VALVE (AUTO SYSTEM)
|
|
CONDENSER : 316SS, ETC
· TYPE : JACKET, SHELL & TUBE TYPE, ETC.
· TEMP. : 0 ~ 250℃
· PRESS. : 0 ~ 6000PSIG |
|
| Order Guide |
| 302 |
A |
B |
C |
D |
E |
F |
G |
| Series |
Net Volume |
Pressure |
Temp. |
Material |
Power |
Control System |
Gas/Liquid |
| 302 |
1. 8ml |
1. 300psig |
1. 300℃ |
1. 304SS |
1. 220/60/1 |
1. Local Controllers
|
1. MFC-Gas
- 1. Gas
- 2. Flow |
| |
2. 12ml |
2. 500psig |
2. 400℃ |
2. 316SS |
2. 220/60/3 |
2. Local Controllers &
R-SCS SW(PC) |
| |
3. 20ml |
3. 1000psig |
3. 500℃ |
3. Hac-C |
3. 220/50/1 |
3. DAQ System
(Only PC version) |
2. MFC-Liq.
- 1. Liquid
- 2. Flow |
| |
4. 100ml |
4. 2000psig |
4. 600℃ |
4. Inconel |
4. Other |
4. Other |
| |
5. 300ml |
5. 3000psig |
5. 800℃ |
5. Other |
|
|
3. Pump-Liq. |
| |
6. 500ml |
6. 5000psig |
6. 1000℃ |
|
|
|
4. Other |
| |
7. Other |
7. Other |
7. Other |
|
|
|
|
|
|
| General 사양 이외의 온도, 압력, 용량일 경우 당사로 연락바랍니다. |
|
| |
|
|
