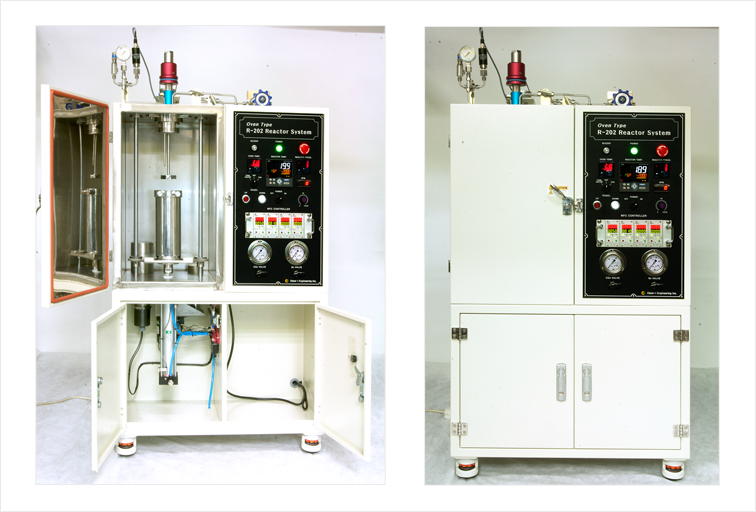

 R-202 Series Oven type Reactor System |
|
| Features |
Easy to make temperature uniform without effect on
Easy to open & close the cover from the vessel because of pin
Easy to move the vessel by lifting in the oven |
| General Specification |
 Pressure Vessel
· Material ( 316SS, Hastelloy C- 276, Ti, inconel, etc.)
· Capacity : 100ml~2L
· Design Max. temperature: 300'C
· Design Max. Pressure: 5000psig
V.F.T.
· Valve , fitting, tubing
|
|
Cover
· Gas Inlet nozzle & Valve
· Gas Outlet nozzle & Valve
· Sample nozzle & Valve
· Cooling coil inlet & Outlet
· Thermowell
· Pressure equipmet nozzle
· Pressure equipmet nozzle |
Structure
· Oven Type skid
· Lifing cylinder
|
|
Heater
· Electric Band Heater
· Ceramic |
Magnetic Drive
· 16, 32 In- Ibs
· Outter & Inner Magnetic
· DC Motor ( 60W, 90W, 1/8HP , 1/4HP, Etc.)
· RPM ( 0~3000 rpm) |
|
Control Box System
· Digital manual & software control box
· Touch screen ( option) |
|
| Order Guide |
| Capacity |
Material |
Pressure(bar) |
Temp.(℃) |
Viscocity(CP) |
| 100ml~500ml ① |
316SS ① |
1~10 ① |
0~100 ① |
Below 10,000 ① |
| 500ml~1L ② |
hastelloy ② |
10~100 ② |
100~200 ② |
10,000~50,000 ② |
| 1L~2L ③ |
Titanium ③ |
100~200 ③ |
200~300 ③ |
above 50,000 ③ |
|
* Please select above numbers. ex) C①M②P①T①V① |
| General 사양 이외의 온도, 압력, 용량일 경우 당사로 연락바랍니다. |
|
| |
|
|
