R-201 Series Reactor System
General Specifications
- The vessel of R-201 Series Reactor is metal.
- General Max. Pressure : 414 Bar (6000 psig)
- General Max. Temperature : 500℃
- General Capacity: 100ml~500L
- R-201 & 211 Series Reactors are designed to select between the metal vessel & glass vessel.
And these are designed to move vessel by pressure cylinder easily.

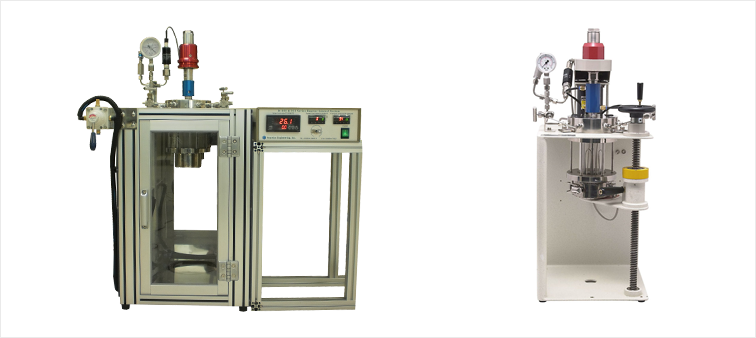

R-211 Series Glass Reactor System
General Specifications
- The vessel of R-211 Series Glass Reactor is glass.
- General Max. Pressure : 14 Bar (220 psig)
- General Max. Temperature : -30~250℃
- Capacity: 100ml~100L
- R-201 & 211 Series Reactors are designed to select between the metal vessel & glass vessel.
And these are designed to move vessel by pressure cylinder easily.

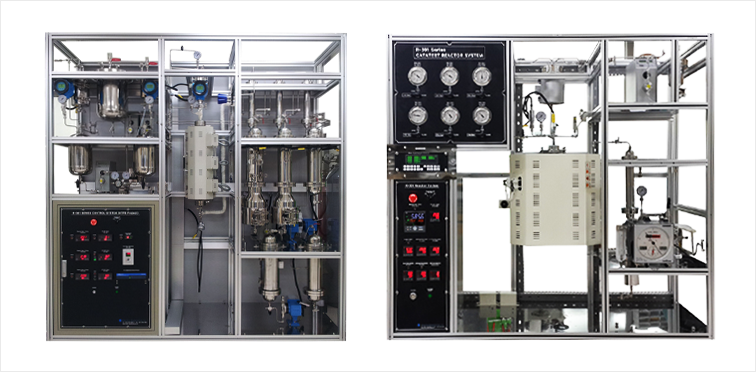

R-301 Series Catatest Reactor System
Use of catatest
- SFE&SCWO can be selected according to its purpose lf use
- Supercritical Fluid Extractions and Reaction' Capacity, Pressure. Temperature, etc, are all optional selections available
- As for Capacity, it is standard from 20mL up to 2L, and when it should be an optional selections available.
- Designing is available from 20mL up to 500mL for 10,000psig, 5,000psig when 1Liter and 2Liters.
General Specification
- Catalyst volume (5mL~2L) : 316SS & Hastelloy C276
- Reactor Design Pressure : 1,000psig~6,000psig
- Reactor Design Temperature : 800℃
- Operating Temperature : 650℃
- Operating Pressure : 1200psig
- Liquide Flow rang : 20mL/min~100L/min
- Gas flow range:
⇒ H2 gas : 50mL/min~3L/min
⇒ O2 gas : 50mL/min~3L/min
⇒ N2 gas : 50mL/min~500mL/min
⇒ Feed&Spare gas : 50mL/min~500mL/min

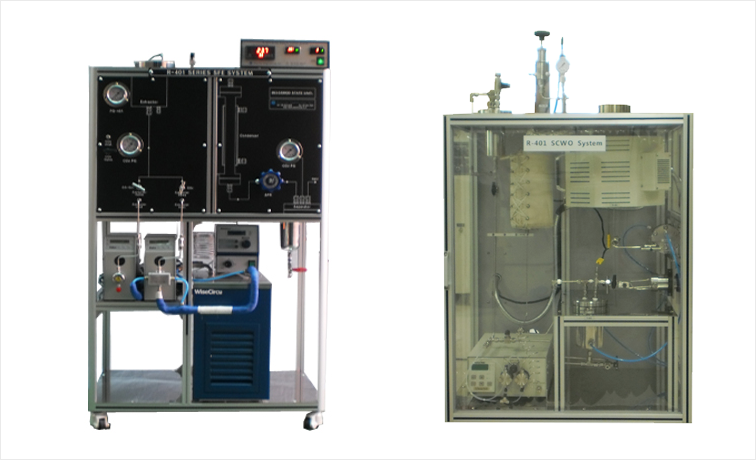

R-401 Series Supercritical Fluid Extraction System & SCWO
Features
- Determinations of different variables for researching on Catalyst improvement, such as; Reacting Temperature,
Pressure and Feed Flow, eaction temperature, Pressure, Feed flow, reaction kinetics, etc
- Test of Catalyst on Hydrogen reaction
- Catalyst Screen, Selectivity & Activity Test
- Test of Catalyst Life Span
General Specification
- Capacity : 50mL~10L
- Design Pressure : 10,000psig
- Design Temperature : 0~500℃
- Materials : 316SS, Hastelloy C-276
- Heater Capacity : 0.5~5Kw
- Support Stand : Floor Stand
- Gas flow range:
- "K"Type Thermocouple & Thermowell
- Pressure Gauge & Pressure Transmiter (0~10,000psig)

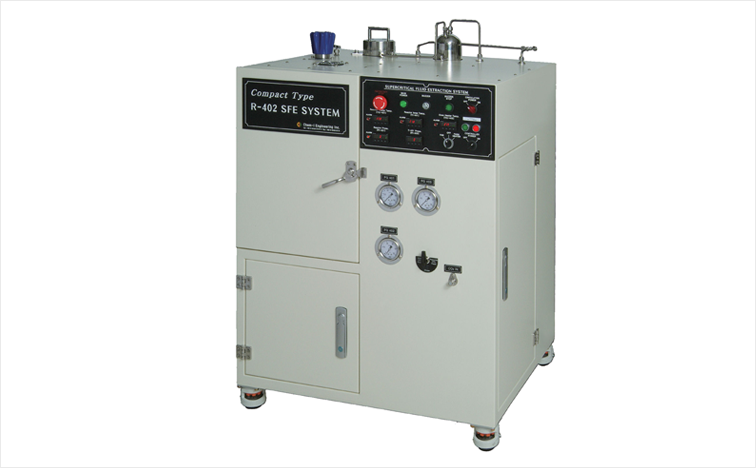

R-402 Compact Supercritical Fluid Extractor System
Features
- Without the effect on surrounding temperature users can make the temperature uniform.
- Users can gain the extract from the extractor more easily than system.
- Users can open & close the cover from the vessel because of pin type.
- Users can move the extractor by lifing in the oven easily.
General Specification
Extractor
· Material : 316SS, hastelloy C-276, Ti ,inconel, etc.
· Capacity : 50ml~ 1.5L
· Design Max. temperature : 250℃
· Design Max. pressure : 10,000 psig
Condenser
· coil type
· insert into the chiller
Seperator
· Capacity : 50ml~ 10Liter
· Material : 316SS
Cover
· gas inlet nozzle & valve
· gas outlet nozzle & valve
· thermowell
· ressure equipments nozzel
· etc.
Receiver tank
· Capacity : 50ml~ 10Litere
· Material : 316SS
Pump
· Design Pressure : 1~10,000 psig
· Material : 316SS
· Connection : 1/4"~1/8"
Heater
· electric band heater

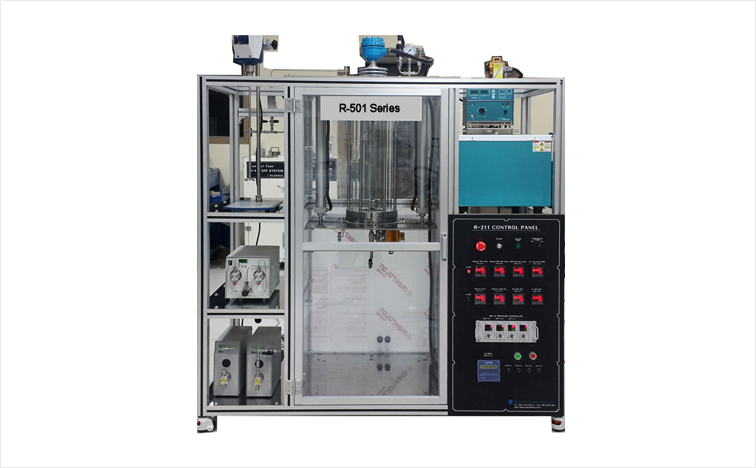

R-501 Series the Automation System
Features
- Temperature monitoring & PID control
- Pressure monitoring
- Pressure Control(option)
- Agitating Speed Monitoring & PID Control
- pH Monitoring
- ISE Monitoring(Options)
- pH Control(Options)
- Conductivity Monitoring(Options)
- DO Monitoring(Options)
- COD Monitoring(Options)
- ORP Monitoring(Options)
- Safety : Overtemp & Overpressure monitoring & Shutoff function
- Programmable Temperature Control(Options)
- R-SCS S/W
- Wave Form Chart : Auto Scale Date (Time vs. Scope, Sweep Chart), Format & precision Control Mapping mode (Linear or log axis), Zoom in Rectangular
- Elapsed Time (HH:MM:SS) : Shows Entire Elapsed time.
- Reaction Time (HH:MM:SS) : Shwos Date Saving.
- Support Korean version of File Name.
- Saving Data with ASCII Format

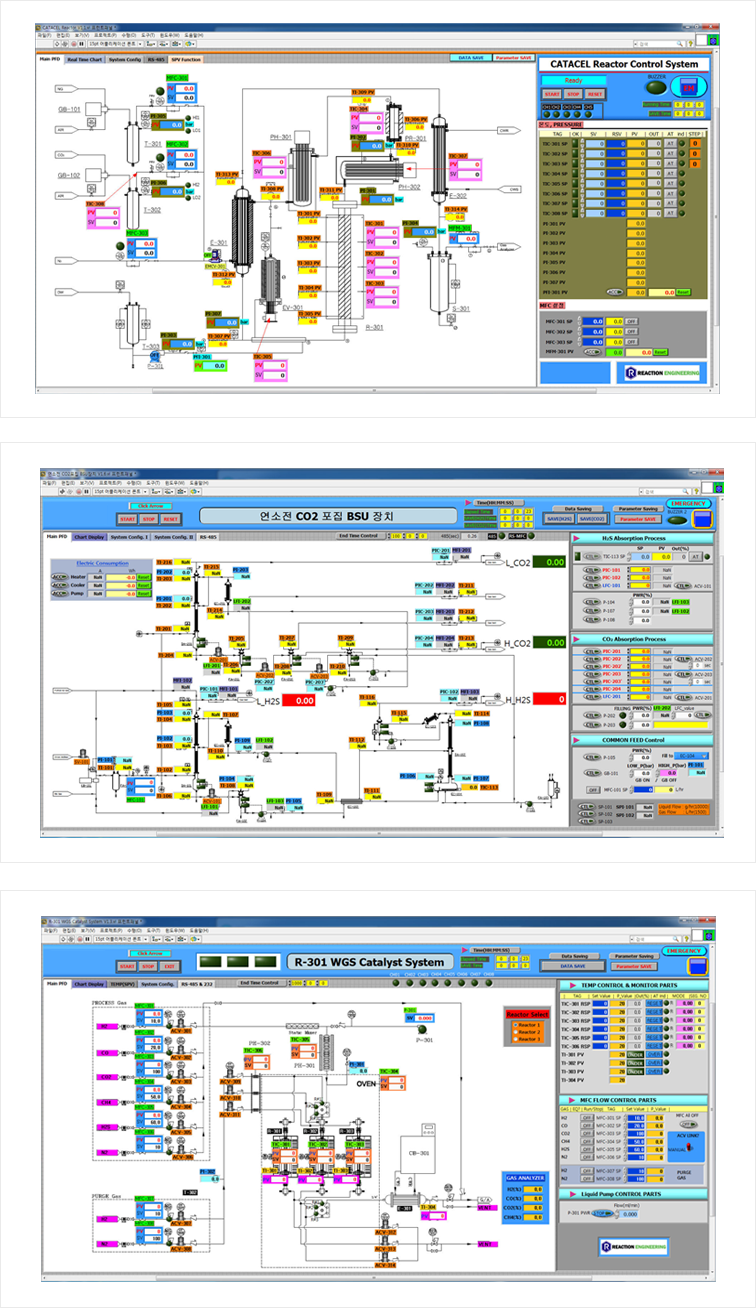

Software Program
