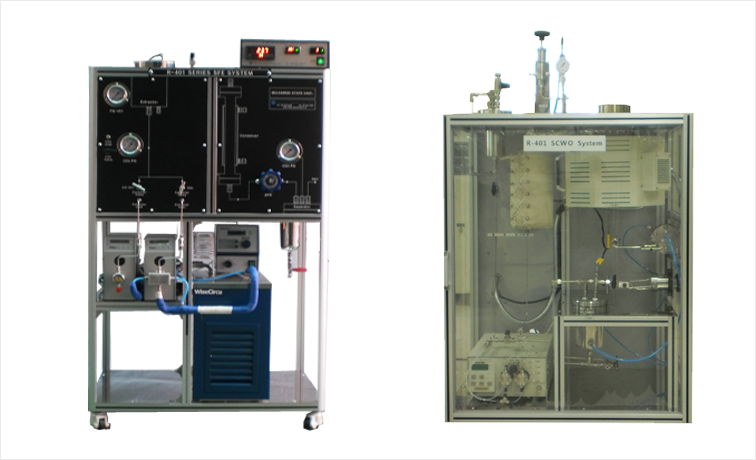

R-401 Series Supercritical Fluid Extraction System & SCWO


Features

- SFE&SCWO can be selected according to its purpose lf use
- Supercritical Fluid Extractions and Reaction' Capacity, Pressure. Temperature, etc, are all optional selections available
- As for Capacity, it is standard from 20mL up to 2L, and when it should be an optional selections available.
- Designing is available from 20mL up to 500mL for 10,000psig, 5,000psig when 1Liter and 2Liters.

General Specification

- Capacity : 50mL~10L
- Design Pressure : 10,000psig
- Design Temperature : 0~500℃
- Materials : 316SS, Hastelloy C-276
- Heater Capacity : 0.5~5Kw
- Support Stand : Floor Stand
- "K"Type Thermocouple & Thermowell
- Pressure Gauge & Pressure Transmiter (0~10,000psig)

Please contact to us for other temperature, pressure and capacity besides above standard specification.
