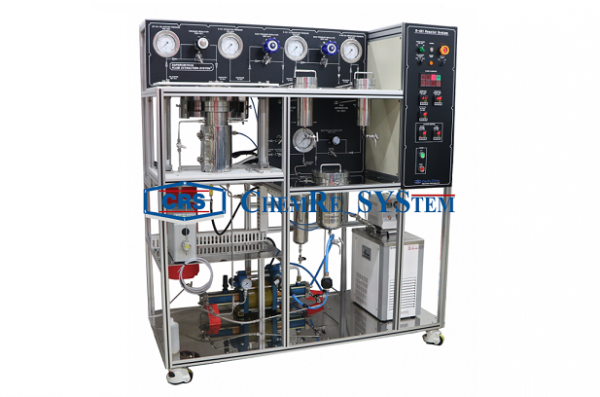

R-401 Model Supercritical Fluid Extractor

with CO2 Recycling

< Multi Purpose Supercritical Systems >

-  Design Temp : 100℃

-  Design Press : 300bar

-  Reactor Module : SS316

-  Capacity : 1L

-  Gas In & Vent Valve

-  Drain Valve

-  Electric Band Heater

-  High Pressure CO2 Booster
-  CO2 Buffer Tank

-  High pressure Separator(3step-1st, 2nd, 3nd)

-  Back Pressure Regulator

-  Receiver Tank

-  CO2 Recycle Line

-  Co-solvent Feed Moduel(Feed Tank, HPLC Pump)

-  Safety pressure Inter-Lock

-  Local Control

- SoftWare Control System

-  Application : Supercritical Fluid Extration, CO2 Recycling
