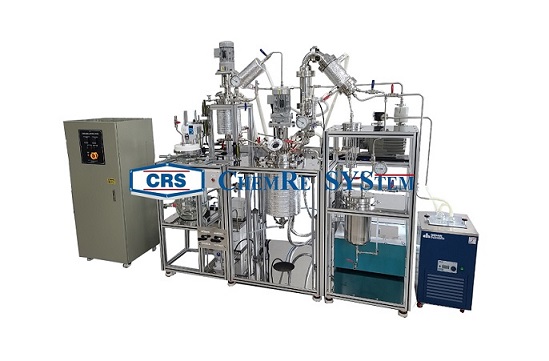

R-201 Model Stirred Reactor System (교반반응기 시스템)

< Multi Purpose Stirred Reactor System >​​

 - Capacity : 20L

 - Design Pressure : Vacuum ~ 1.9bar

 - Design Temp : 200℃

 - Reactor : STS316L

 - Mechanical Seal with Cooling

 - Heater : Jacket type & Insulation Cover

 - Air Cylinder Motor Lifting Type (Vessel Up & Down, Front & Rear Sliding)

 - Thermowell & RTD Sensor

 - Pressure Gauge & Pressure Transmitter

 - Pressure Relief Valve

 - Sight Glass & Light Glass

 - Gas Inlet & Vent Port Valve, Feed Laader Port, Bottom Drain Port

 - ​Feed Tank 5L

 - Double Tube ​Condenser

 - Shell & Tube Condenser

 - Glass Reactor 20L

 - Column 5L

 - Separator 1L

 - Receiver Tank 10L​

 - Vacuum Pump & Cold Trap​

 - Digital Reactor Temperature Indicator

 - Digital Jacket Temperature Indicator

 - Digital Pressure Indicator

 - Digital Speed Controller (RPM)

 - Digital Pressure Indicator

 -  Application : Hydrothermal Reaction, Chemical Reaction, Hydrogenation,

    Nano Synthesis, Nanobiochemistry, Chemical Synthesis, Polymerization, etc​
